Critical safety devices for positive isolation and pressure testing in pipelines.
Blind Flanges: A solid disk used to block off a section of pipe or a nozzle on a vessel. It allows for easy access to the interior of a line once sealed and must withstand higher mechanical stress than other flange types.
Spectacle Blind Flanges: A permanent safety device machined from a single piece of metal. It fits between two flanges to provide positive isolation during maintenance, offering a clear visual indication of whether the line is open or closed.

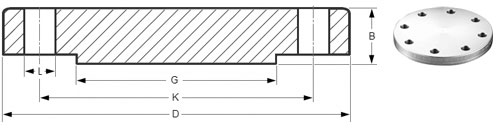

| Dimension (NPS 1/2) |
Pressure Class | ||||||
|---|---|---|---|---|---|---|---|
| 150 | 300 | 400 | 600 | 900 | 1500 | 2500 | |
| Diameter (D) | 90 | 95 | 95 | 95 | 120 | 120 | 135 |
| Height (B) | 9.6 | 12.7 | 14.3 | 14.3 | 22.3 | 22.3 | 30.2 |
| Diameter (G) | 35.1 | 35.1 | 35.1 | 35.1 | 35.1 | 35.1 | 35.1 |
| Diameter (K) | 60.3 | 66.7 | 66.7 | 66.7 | 82.6 | 82.6 | 88.9 |
| Bolt Holes | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
| Stud Length | 55 | 65 | 75 | 75 | 110 | 110 | 120 |
|
|
Design Standards |
Blind: ASME B16.5, ASME B16.47 Series A & B Spectacle: ASME B16.48, API 590 General: MSS SP-44, API 605, AWWA C207 |
|
|
Size Range | Blind: 1/2″ - 60″ Spectacle: 1/2" - 48" Custom: Up to 200" |
|
|
Pressure Ratings |
ASME: Class 150, 300, 600, 900, 1500, 2500 DIN/PN: PN6, PN10, PN16, PN25, PN40, PN64, PN100, PN160 |
|
|
Facing Types | Raised Face (RF), Flat Face (FF), Ring Type Joint (RTJ), Tongue & Groove (T&G), Male-Female (M/F) |
|
|
Manufacturing Process |
Blind: Forged, Machined from Bar Spectacle: Machined from Plate (A516 Gr.70 / A240), Laser Cut, Forged |
|
|
Face Finish | 125-250 AARH (Stock Finish), 63 AARH (Smooth), 3.2-6.3µm |
|
|
Surface Coating | Anti-rust Oil, Black Phosphate, Yellow Golden (Zinc), Hot Dip Galvanized (HDG), PTFE Coated |
|
|
Key Applications | Pipe Line Isolation, Hydro-Testing, End of Line Shut-off, Maintenance Safety (Spectacle) |
ASTM A105 / A105N
A516 Gr.70 (Plate for Spectacle)
ASTM A694 F42 - F70
ASTM A182 F304/L, F316/L
ASTM A182 F321, F347
ASTM A240 (Plate for Spectacle)
ASTM A182 F11, F22
ASTM A182 F5, F9, F91
High Temp & Pressure Grades
Duplex 2205, Super Duplex
Inconel 625, Monel 400
Hastelloy C276, Titanium
Spectacle blinds provide a visible physical barrier for 100% safety during maintenance.
Designed to withstand extreme pressure stresses near the center of the blind.
Tailor-made manufacturing up to 2800mm diameter using advanced ring rolling.
